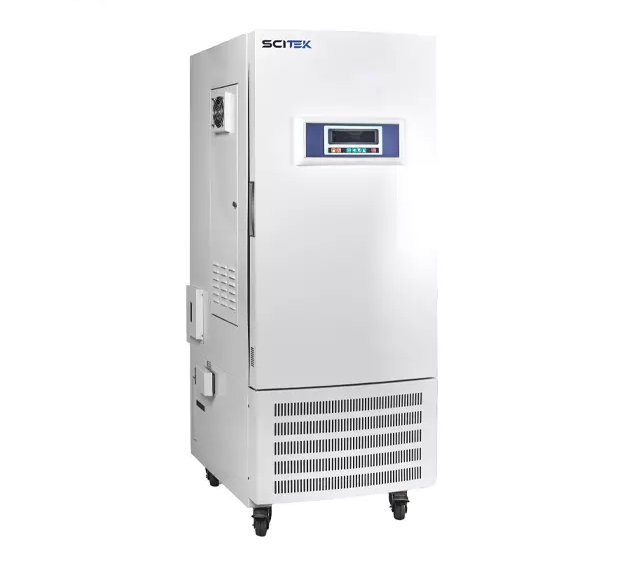

Spesifikasi Climate Chamber
|
Model |
ICB-175C |
ICB-275C |
ICB-375C |
ICB-475C |
ICB-800C |
ICB-1075C |
|
|
Capacity(L) |
175 |
275 |
375 |
475 |
800 |
1075 |
|
|
Circulation Mode |
Forced convection |
||||||
|
Size (WxDxH) |
Internal (mm) |
450×420 x930 |
580×510 x935 |
590×550 x1160 |
700×550 x1250 |
960×610 x1370 |
950×700 x1600 |
|
External (mm) |
610×62 0x1500 |
740×710 x1570 |
750×750 x1730 |
860×750 x1820 |
1130×930 x1980 |
1010×900 x2240 |
|
|
Temperature |
Range (℃) |
With light: 10~55; Without light: 5~55 |
|||||
|
Fluctuation (℃) |
≦ ±1 |
||||||
|
Resolution (℃) |
0.1 |
||||||
|
Uniformity (℃) |
≦ ±1 |
||||||
|
Sensor |
PT100 |
||||||
|
Humidity |
Range |
30~95%RH |
|||||
|
Stability |
±3%RH |
||||||
|
Method |
Internal |
||||||
|
Sensor |
High precision anti-condensation |
||||||
|
Illumination(Lx) |
0~10000 |
0~15000 |
0~20000 |
0~23000 |
0~25000 |
0~25000 |
|
|
Controller |
Microcomputer |
||||||
|
Display |
Large high efinition LCD |
||||||
|
Timer |
1~99.9h x 30 Segments |
||||||
|
Material |
Internal |
Mirror Stainless Steel |
|||||
|
External |
Coated cold rolled steel |
||||||
|
Shelves(Standard / Max ) |
3 / 16 |
3 / 16 |
3 / 21 |
3 / 22 |
3 / 22 |
3 / 22 |
|
|
Test Hole (Optional) |
Φ25mm (50mm) |
||||||
|
Refrigerant |
R134a (CFC free) |
||||||
|
Defrosting Mode |
Automatic |
||||||
|
Safety Device |
Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector, spare temperature control |
||||||
|
Electricity |
Voltage /Frequency |
AC 220/110V, 50/60Hz |
|||||
|
Consumption (W) |
860 |
1700 |
2100 |
4000 |
5000 |
6000 |
|
|
N.W./G.W. (kg) |
180/234 |
211/267 |
249/339 |
306/369 |
368/518 |
450/620 |
|
|
Shipping Size (WxDxH) (mm) |
750×1860 x840 |
1010×900 x1880 |
880×980 x2100 |
1010×1000 x2250 |
1290×1070 x2320 |
1290×1170 x2600 |
|
|
Optional |
Build-in printer, RS485 port, Φ25mm (50mm) test hole, spare shelf |
||||||
