Spesifikasi :

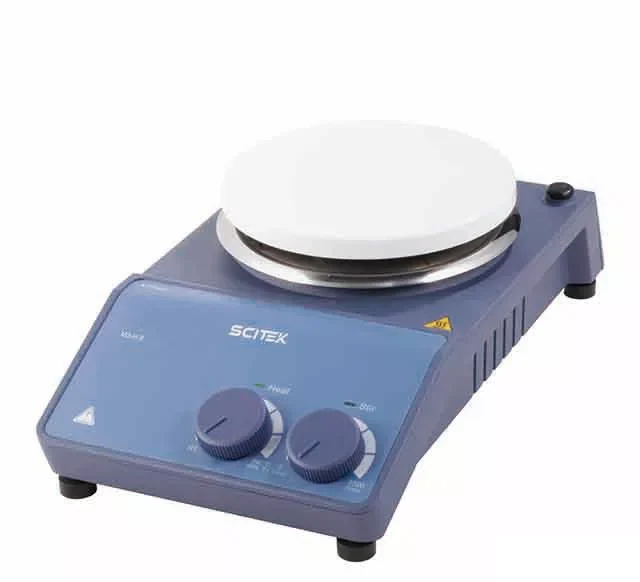

| Model | HMS-S |
| Work Plate Size | φ135mm (5 inch) |
| Work Plate Material | Stainless steel cover with ceramic |
| Motor Type | Brushless DC motor |
| Stirring Positions | 1 |
| Max. Stirring Quantity (H2O) | 20L |
| Max. Magnetic Bar (Length) | 80mm |
| Speed Range | 0-1500rpm |
| Resolution ±1rpm | |
| Speed Display | Scale |
| Temperature Display | Scale |
| Heating Temperature Range | Room temp.-340°C |
| Temperature Control Accuracy | – |
| Over Temperature Protection | 420°C |
| Temperature Display Accuracy | ±0.5°C |
| External Temperature Sensor | – |
| Hot Warning | – |
| Timer Function | – |
| Data Connector | – |
| Protection Class | IP42 |
| Motor Rating Input | 18W |
| Motor Rating Output | 10W |
| Power | 530W |
| Heating Output | 500W |
| Permissible Ambient
Temperature and Humidity |
5-40°C, 80%RH |
| Power Supply | 100-120/200-240V, 50/60Hz |
| Size(W×D×H)(mm) | 160×280×85 |
| Shipping Size(W×D×H)(mm) | 470×250×240 |
| N.W./G.W. (kg) | 2.8/3.7 |
