Fitur Utama:
Kinerja stabil dan serbaguna, cocok untuk berbagai aplikasi laboratorium seperti penyimpanan sampel biologis, reagen kimia, dan bahan sensitif suhu.
Dilengkapi sistem alarm untuk mendeteksi gangguan daya, kerusakan sensor, dan kegagalan termostat, sehingga menjamin keamanan penyimpanan.
Dirancang untuk operasi yang efisien dan andal di berbagai kondisi laboratorium.
Keandalan (Reliability):
- Sistem Alarm Suhu Suara & Visual (Audible & Visual Alarm System):
Dilengkapi buzzer dan lampu peringatan untuk mendeteksi kondisi:
- Suhu tinggi/rendah (High/Low Temperature)
- Gangguan daya (Power Failure)
- Kesalahan sensor (Sensor Error)
- Pintu tidak tertutup (Door Ajar)
- Kerusakan termostat (Thermostat Failure)
2. Keamanan Penyimpanan (Door Lock):
Sistem penguncian pintu memastikan bahan tersimpan aman.
Desain Ergonomis (Ergonomic Design):
- Roda dengan system gerak halus
Dilengkapi caster berkualitas tinggi untuk mobilitas yang mudah tanpa merusak lantai
2. Lubang uji standar (Standard Test Hole):
Tersedia lubang uji berdiameter 25 mm, memudahkan pemasangan sensor suhu eksternal atau perlatan pemantauan tambahan.
.
Spesifikasi Teknis

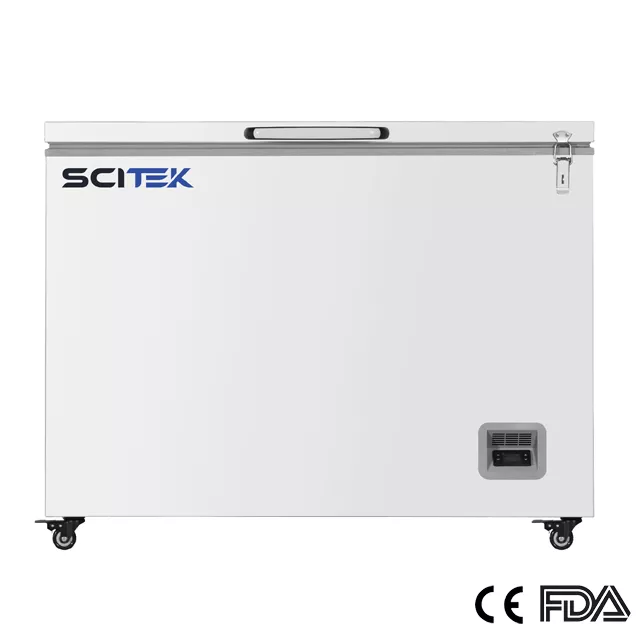

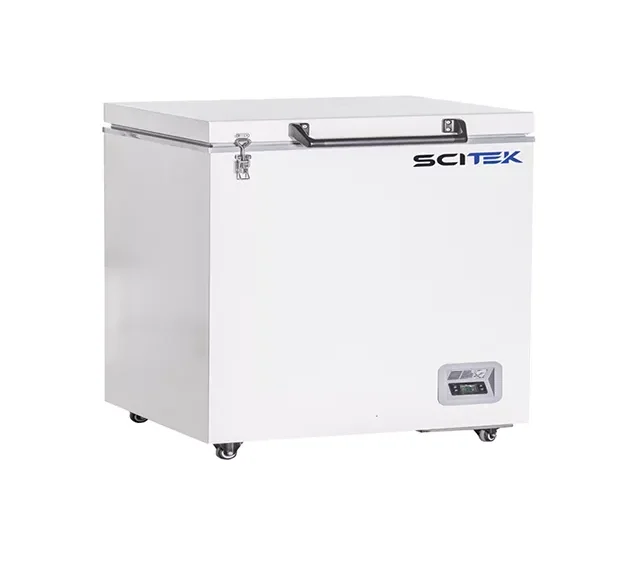

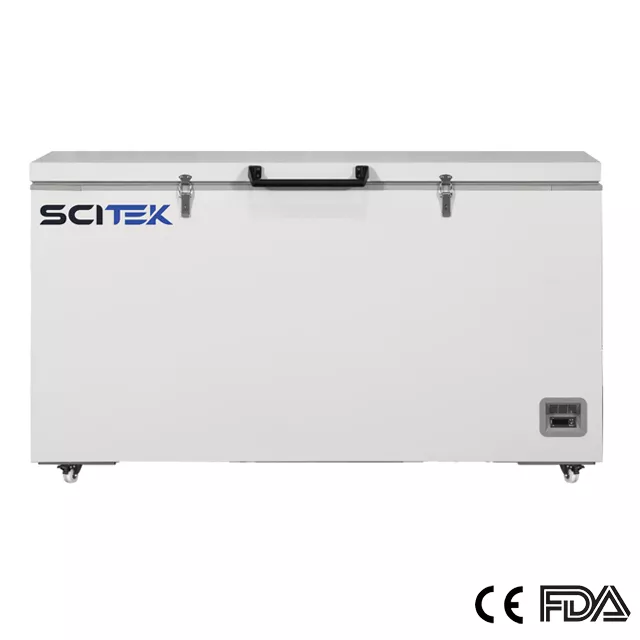

| Model | FZ-25H110 | FZ-25H490 | FZ-25H310 | |
|---|---|---|---|---|
| Capacity (L) | 105 | 485 | 305 | |
| Size (WxDxH)(mm) | Internal | 480x380x665 | 1455x525x665 | 1000x520x665 |
| External | 621x588x883 | 1655x755x915 | 1140x742x883 | |
| Temperature | Range (℃) at RT.10~32℃ | -10~-25 | -10~-25 | -10~-25 |
| Sensor | NTC | NTC | NTC | |
| Controller | Microprocessor | Microprocessor | Microprocessor | |
| Cooling System | Refrigerant | R290 (CFC Free) | R290 (CFC Free) | R134a (CFC Free) |
| Defrost | Manual | Manual | Manual | |
| Compressor (Qty) | DONPER/1 | CUBIGELN/1 | China brand/1 | |
| Display | Digital display | Digital display | Digital display | |
| Audible &
Visible Alarm |
High/Low Temperature | Standard | Standard | Standard |
| High Ambient Temperature | / | / | / | |
| Sensor Error | Standard | Standard | Standard | |
| Abnormal Voltage | / | / | / | |
| Power Failure Backup
System (alarm) |
12h | 12h | 12h | |
| Door Ajar | / | / | / | |
| Material | Internal | Electro-galvanized stee with
antimicrobial powder coating |
Stainless steel, grade 304 | Electro-galvanized steel with
antimicrobial powder coating |
| External | Electro-galvanized steel with antimicrobial powder coating | |||
| Accessories | USB Port | / | / | / |
| Casters | Standard | Standard | Standard | |
| Data Logger | Optional | Optional | Optional | |
| Remote Alarm Port | / | / | / | |
| Test Hole (Qty)/
Diameter (mm) |
1/25 | 1/25 | 1/25 | |
| Shelves / Drawers (Qty) | / | / | / | |
| Sound Emission (dB) | 46 | 55 | 50 | |
| Electricity | Voltage/Frequency | AC110/220V±10%, 50/60Hz | ||
| Consumption (W) | 174 | 295 | 128 | |
| N.W./G.W. (Kg) | 31/34 | 124/138 | 66/70 | |
| Shipping Size (WxDxH)(mm) | 670x610x980 | 1710x885x1020 | 1225x772x1010 | |
